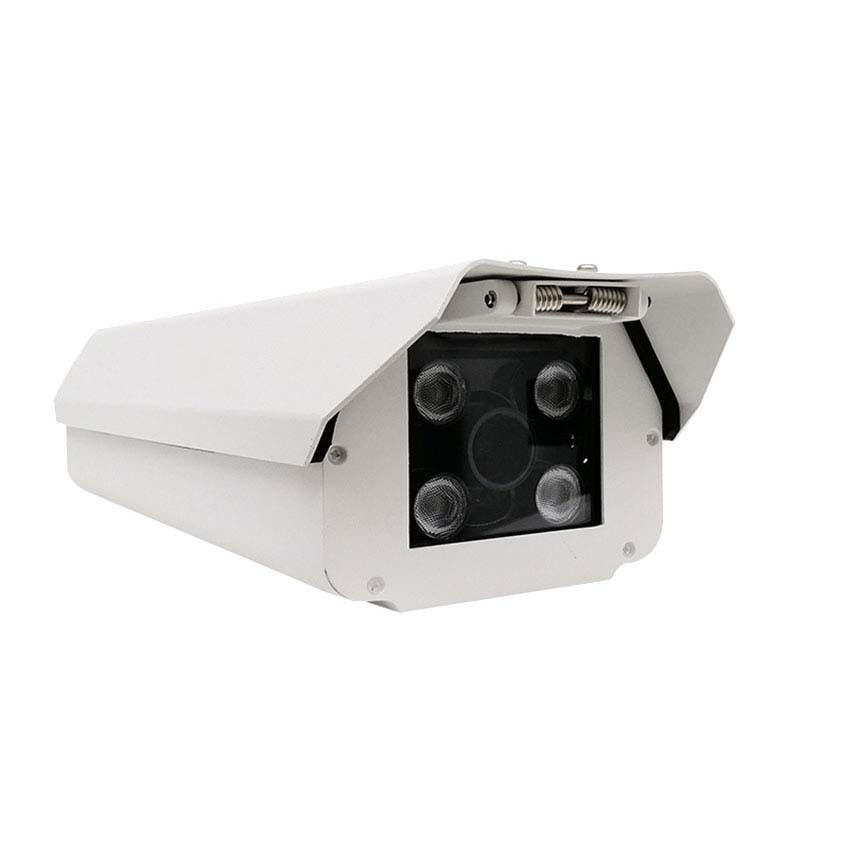

Imaging | Part Number | RPL-C8 Series |
Sensor | 2MP/3MP/4MP/5MP Starlight CMOS | |
Resolution | 2560*1440 | |
Low illumination | 0.1 Lux color | |
Electronic shutter | 0-10 ms; the default is 5 ms. | |
Standard lens | 2.8-12mm zoom lens | |
Interface | M12 | |
Image Indicator | Image settings | Brightness, gain, and exposure time |
Noise reduction | 2D/3D noise reduction is available | |
Interface | Network interface | 1-way 10/100 Mbps adaptive RJ45 port |
I/O Output | 2-way | |
I/O Input | 4-way (the default switch quantity to switch different level signals) | |
RS485 | 2-way | |
USB | 1-way A-type USB interface | |
Reset key | 1-way RESET key | |
System indicator | 1-way GPIO status indicator | |
Power supply indicator | 1-Way power supply indicator | |
Reliability indicator | Temperature | Operating Temperature: -30℃~+75 ℃ |
Static electricity | Contact 6 kV, air 8 kV | |
Surge | Electric surge 2 kV,Interface surge 6 kV | |
EFT | Power supply EFT 2 kV,Data cable EFT 2 kV | |
Power supply | 12V DC | |
Power consumption | Power consumption≤4 W | |
Protection | IP65 | |
Structure Parameter | Fill light | 4 lights |

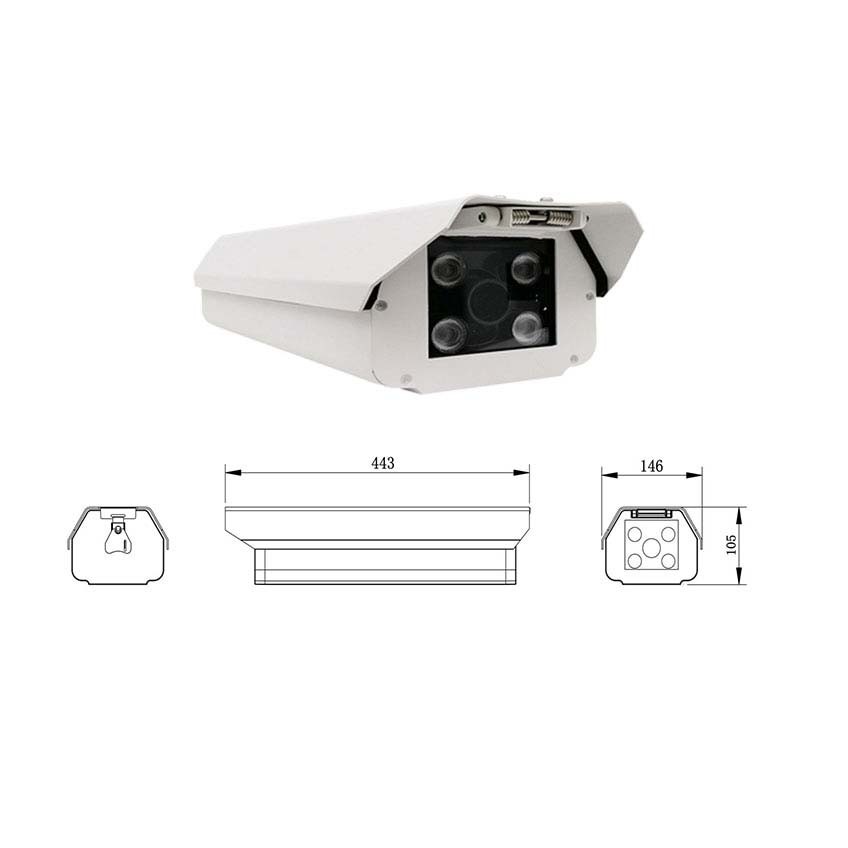

Overall dimensions | Whole machine: 443 mm*146 mm*105 mm |
