Technical Parameter
Types of | project | parameter |
Intelligent | Vehicle capture rate | ≥99.9% |
Recognition | License plate recognition rate | >95% |
Video input | sensor type | 4 million pixel star-level CMOS |
Lens and focal length | Zoom 2.8-12mm | |
Exposure time | 1/100 ~ 1 / 10000s | |
Video output | Image size | 1440P,1080P,720P,4CIF |
Compression standard | Video H.264 / Picture JPEG | |
Compressed output bit rate | 384Kbps ~ 4Mbps | |
Highest frame rate | Main stream 25FPS, substream 25FPS | |
Image settings | Adjustable shutter, gain, brightness, etc. | |
Business functions | Snapshot trigger type | Video, coil, video + coil |

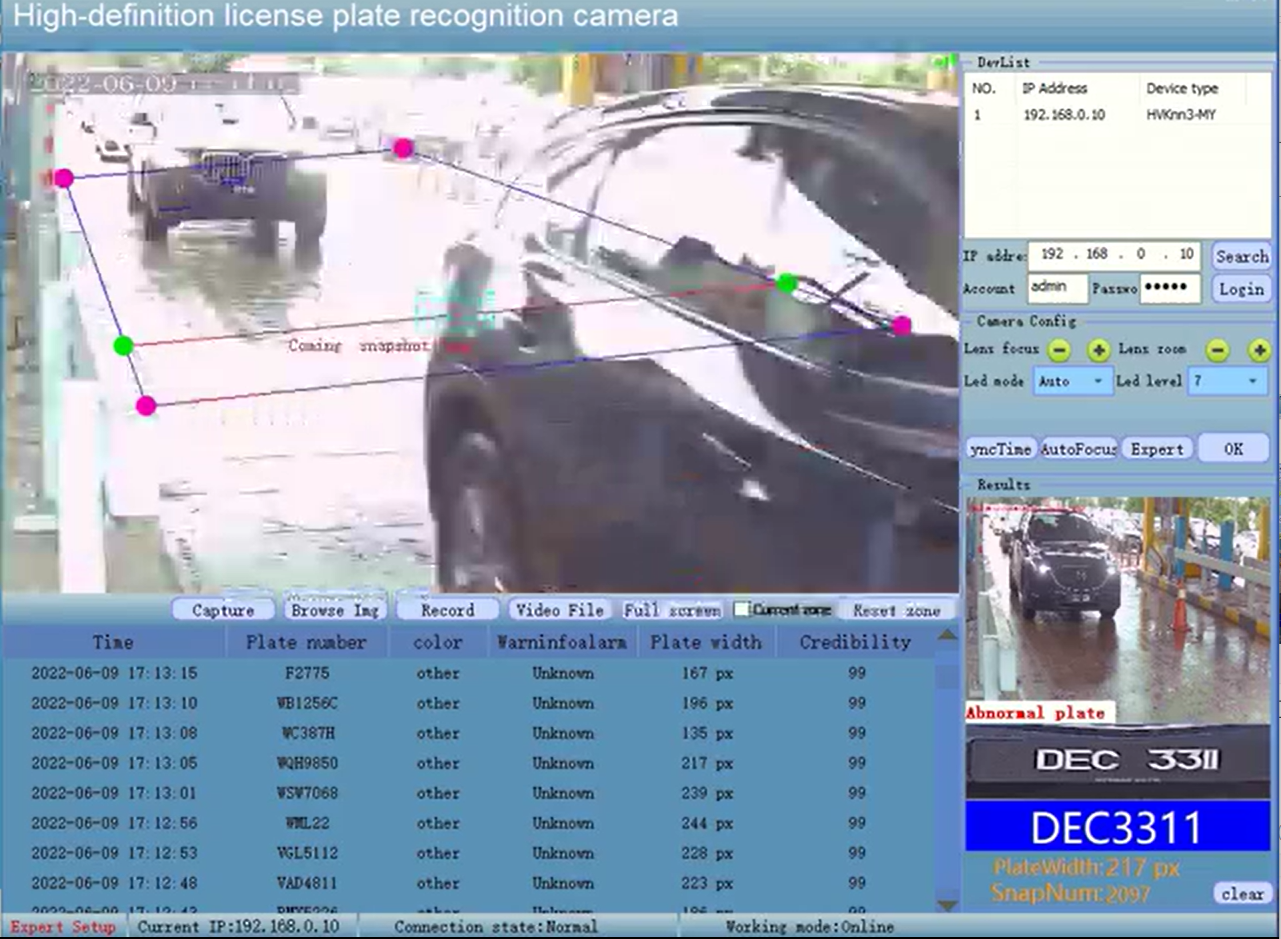

Output information | Large picture of the vehicle, small image of the license plate, license plate number, license plate color | |
OSD information overlay | Support, can define time, place, license plate, etc. | |
One-click reset | Short press for 2 seconds to restore the default IP, username and password | |
White list function | Long press for 10 seconds, restore the default IP, username and password, factory configuration | |
Offline charges | Support white list import and export functions | |
Voice intercom | Support offline charging function | |
External interface | The internet | 1 RJ45 100M adaptive network interface |
communication | 2 RS485 interfaces | |
power supply | 1 AC voltage interface(90V-270V) | |
Enter | 2 digital inputs / levels, 2 digital inputs |
