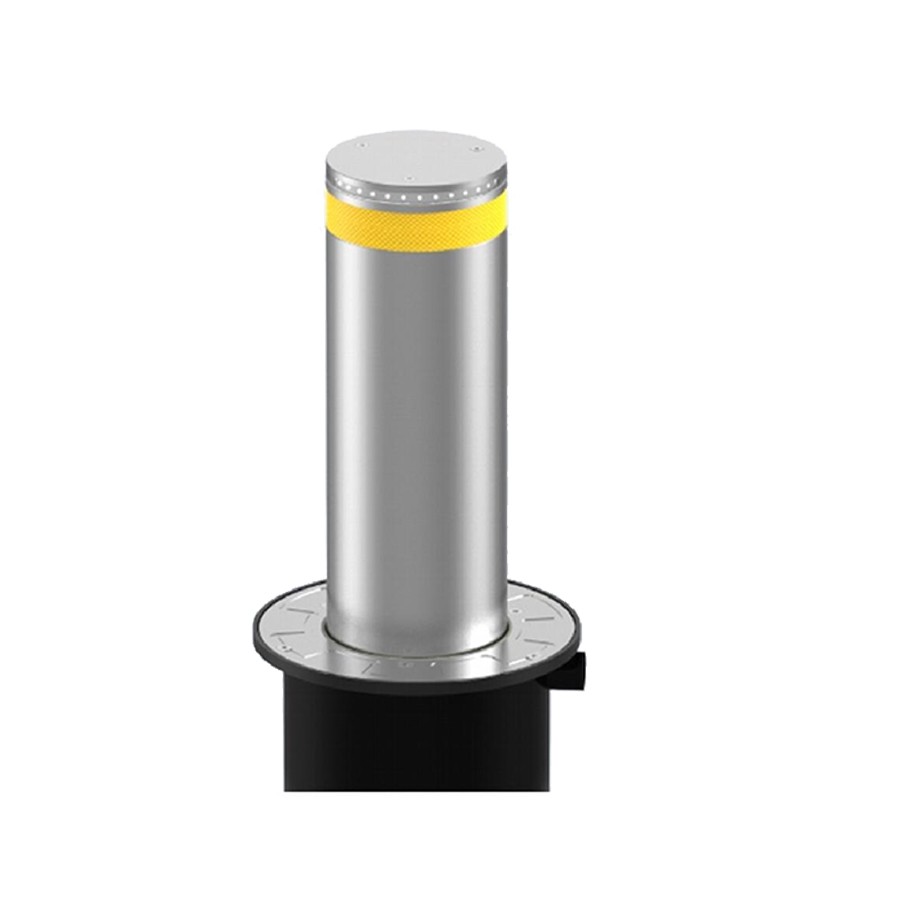

Part Number | RPL-LB01 |
Rise Time | 3.8S |
Fall Time | 3S |
Equipment Size | φ400*1105mm |
Interception Height | 600mm |

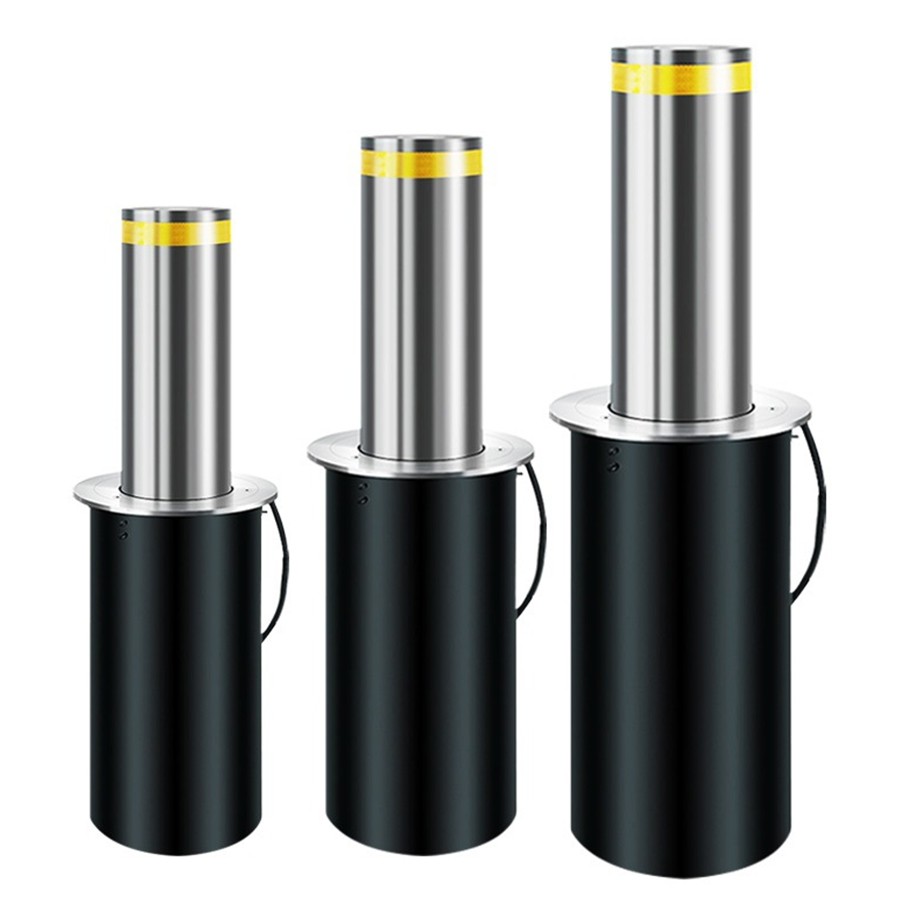

Cylinder Diameter | 219、273、324mm |
Column Thickness | 6、8、10mm |
Embedded Depth | 1105mm |
Cylinder | 304 stainless steel |
Column Thickness | Thickness 6mm |
Flange | 304 stainless steel |
Flange Thickness | 10mm |
Embedded bucket | A3 steel powder spraying |
Piston Rod | 45 gauge steel chrome plated |
Cylinder Head | 45 gauge steel chrome plated |
Piston Rod Diameter | 16mm |
Hydraulic Cylinder Housing | No. 45 steel spraying |
Guide Rail | Anti-rust hardening treatment |
Rail Diameter | 16mm |
Reflective Film | High brightness diamond grade reflective film |
LED Warning Lights | Highlight, Colorful, Gradient |
Power Unit | Electro-hydraulic integrated actuator |
Lifting Force | 130kg |
Protection Class | IP67 |
Power Supply | 220VAC(Control Voltage 24VDC) |
System Power | 350W |
Usage Frequency | 1.5 Times/Minute |
Movement overheating protection | 130°C |
Heating Equipment | None |
Fuel Tank Capacity | 4L |
Operating Temperature | -20℃~55℃ |
