Type

Single movement model (indoor use)

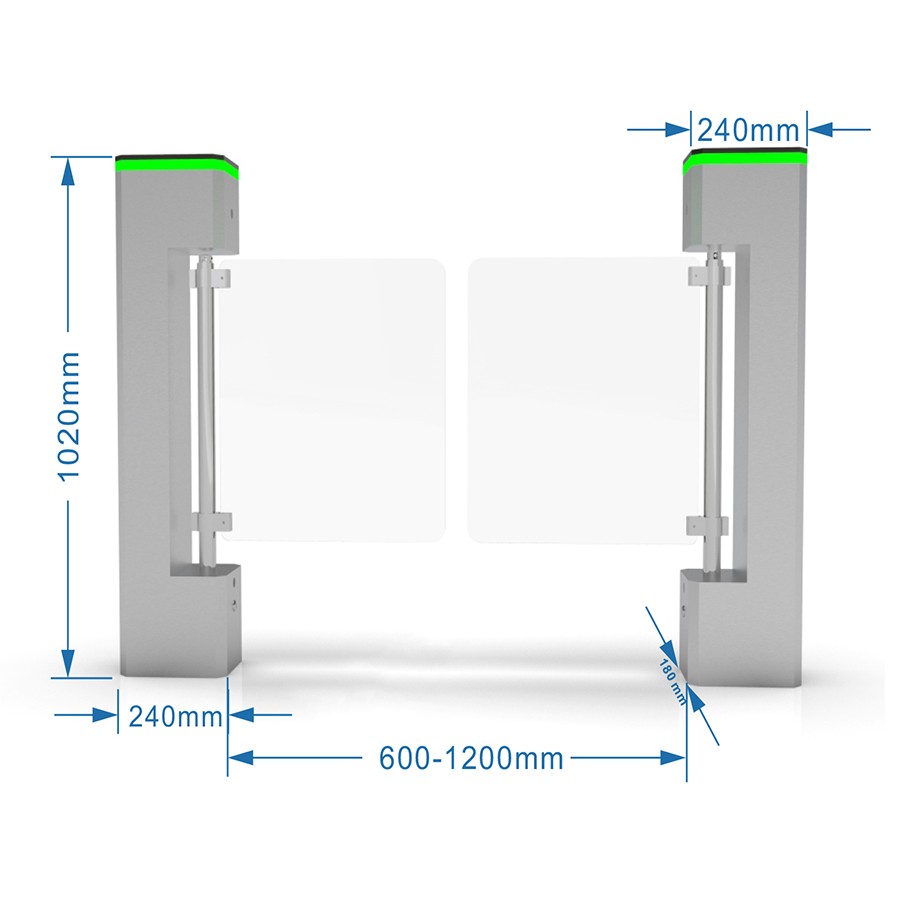

Chassis Size

240 * 180 * 1020mm (length * width * height)

Door Body Material

High strength polycarbonate material (acrylic), 304 stainless steel swing arm

Description of Channel Width

550-1200mm

Status Description

LED at the top of the chassis, indicator (showing blue, red and green)

Material

SUS 304 brushed stainless steel, 1.2mm;

Power Supply Voltage

220VAC ± 10% / 15%, 50 HZ ± 4%;

Drive Motor

DC brushless motor DC 24V;

Drive Mode

Digital mode;

IR Quantity

1 pair

Working Environment

-20℃ ~ + 75℃;

Travel Speed

20-35 people / minute;

Average Number of No failures

5 million times;

Relative Temperature

5% - -90% no condensation;
